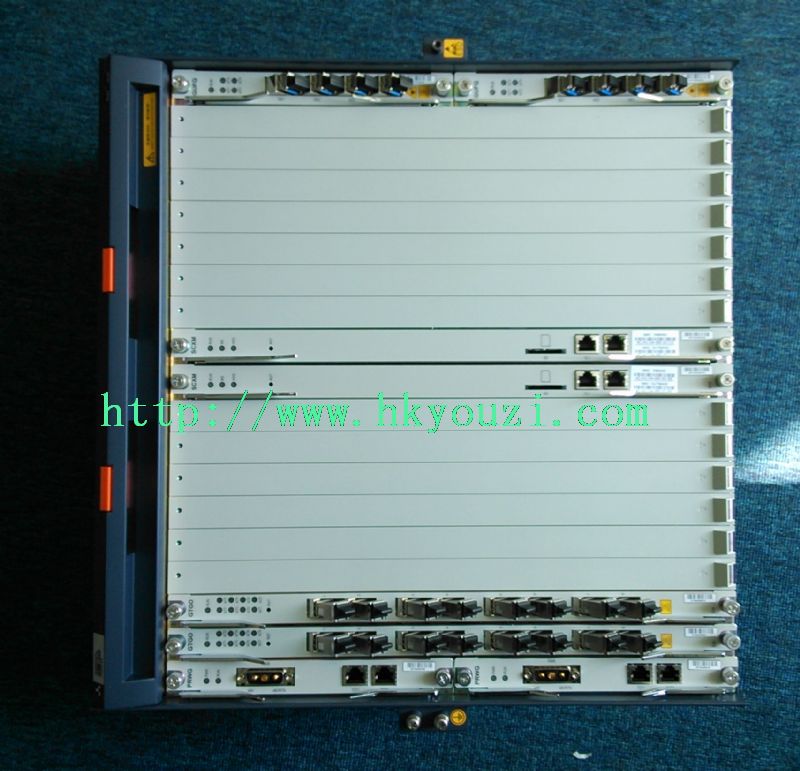

ZTE_ZTE ZXA10 C300_OLT

Item specifics

Name: OLT
Model: ZTE ZXA10 C300
Manufacturer: ZTE
Producing Area: CN
Simple Description: ZTE ZXA10 C300 supports EPON,GPON
Price: Inquire   hot sale

Product Description

In the face of increasing demands for high bandwidth and multi-play services, operators have to make a balance between economy and mass roll-out. How to smoothly evolve from FTTC, FTTB and FTTCab to FTTH is a challenge in front of telcos nowadays. Operators are considering building a PON network that is green, future-proof and saves TCO.
ZTE C300 OLT, the world's first future-proof and largest capability optical access platform, is developed with mass optical access roll-out as well as economy in mind. Its powerful functions and high performance make mass FTTx roll-out easier than ever before.

Main Parameters:

10U high, vertical plug card,front access
19-inch rack with 21 slot
System Capacity: 14 service card slots(GPON/EPON/P2P/10G EPON/XG-PON1)
Up to 16384 GPON subscribers access
Up to 16*10GE uplink
Physical transmission distance: 20Km~60Km
Management interface: CLI ( Telnet or RS232), SSH, SNMP V1/2/3, SNMP proxy
Key Features:

Compatible with ITU G.984.x
Support ITU-T G.987.x and G.988
Support Optical Laser Supervising (OLS)
Physical reach: 20~60km
GPON Transceiver power: Class B+ and Class C+
XGPON Transceiver power: N1, N2, E1 and E2
Support Type B and Type C protection
Support SR-DBA and NSR-DBA
Downstream and upstream FEC
Support AES128 encryption
Support SCB (Single Copy Broadcast)
Full G.984.4 OMCI Stack
Support migration to NG PON2
4K VLAN number, IEEE 802.1q, 1:1/N:1 VLAN, VLAN translation, VLAN Stacking (QinQ )
VRF, ARP agent/ proxy
STP/RSTP/MSTP
Link aggregation IEEE 802.3ad
DHCP server, DHCP Relay ( option 60/82), DHCP proxy, DHCPv6 L2/L3 relay agent
IPv4 and IPv6 dual stack
1588v2, 1PPS+TOD, SynE, BIT/HZ
L3 routing: IPv4/6 Statistic routing, OSPFv2, BGPv4, RIP V1/V2, ISIS
L2- L4 flow classification and ACL
IGMP V1/2/3, IGMP/MLD snooping/proxy/router
256 Multicast VLANs
IGMP pre-join and fast leave
Supported Cards:

Control & Switch Card:
SCXN: Type N control and switch card, 480G switching capacity
SCXL: Type L control and switch card, 960G switching capacity
SCTM: Type T control and switch card, 2.56T switching capacity
Subscriber Cards:
GTGO/GTGH - 8/16 ports GPON line card
GTXO - 8 ports XG-PON1 line card
FTGK - 48 ports P2P/24 ports GE/FE optical Ethernet interface card
CTUB - 32-channel E1 unbalanced CES interface card
CTLA - STM-N CES interface card
Common Cards:
CICK/CICG - Common interface card
PRWG - Power supply card
Ethernet uplink cards:
GUFQ - 4 ports GE/FE optical interface Ethernet uplink card
GUSQ - 2 ports GE optical and 2 ports GE/FE electrical interface Ethernet uplink card
XUTQ - 4 ports 10GE optical interface Ethernet uplink card
HUTQ - 2 ports 10GE and 2 ports GE optical interface Ethernet uplink card
HUVQ - 2 ports 10GE/GE and 2 ports GE/FE optical interface Ethernet uplink card(Sync-E)

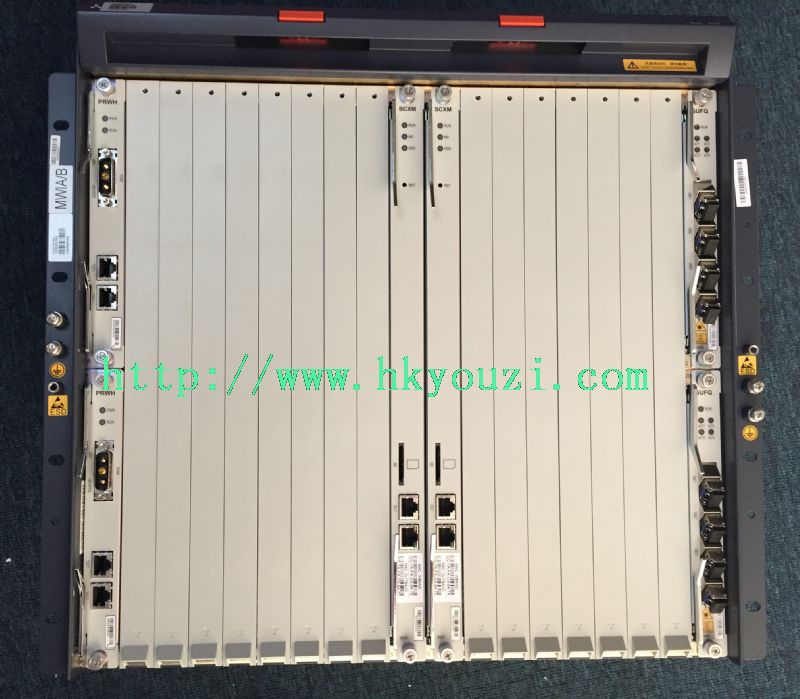

ZXA10 C300 configuration:

C300 rack
C300 management card SCXM or SCXL*2PCS
C300 Power Card PRWG*2PCS
C300 Unlink Care GUSQ or GUFQ, HUTQ or XUTQ
C300 line Card
