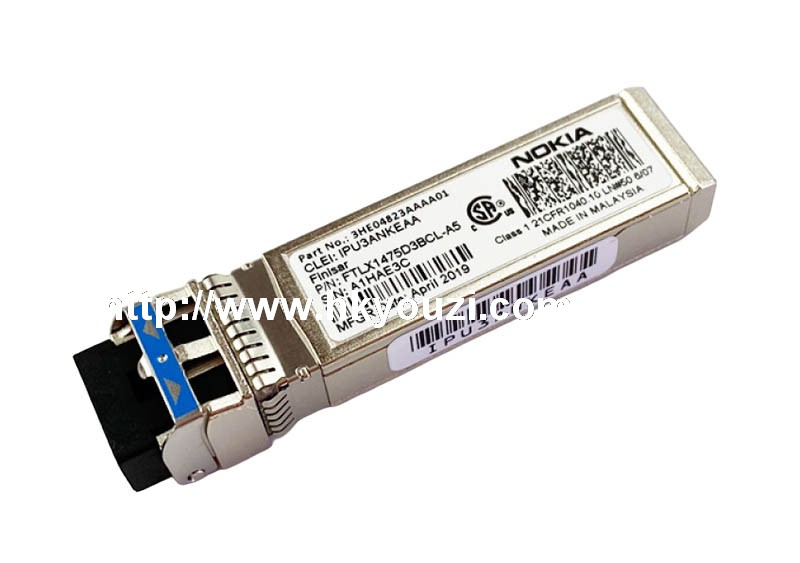

The Nokia 3HE04823AAAA01 10Gb/s Enhanced Small Form Factor Pluggable SFP+ optical transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. The Nokia 3HE04823AAAA01 employs a limiting receiver. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
Features
- Genuine Nokia 3HE04823AAAA01 IPU3ANKEAA
- Hot-pluggable SFP+ footprint
- Supports 9.95 to 10.5Gb/s bit rates
- Power dissipation < 1W
- RoHS compliant
- Single 3.3V power supply
- Maximum link length of 10km
- Uncooled 1310nm DFB laser
- Receiver limiting electrical interface
- Duplex LC connector
- Built-in digital diagnostic functions
- Commercial temperature range: -5鎺矯 to 70鎺矯
Applications
- 10GBASE-LR/LW 10G Ethernet
- 1200-SM-LL-L 10G Fibre Channel
Specifications
- Brand: Nokia
- Part Number: 3HE04823AAAA01, IPU3ANKEAA
- MPN: FTLX1475D3BCL-A5
- Form Type: SFP+
- Speed: 9.95~10.5Gb/s
- Connector: Duplex LC
- Media: SMF
- Wavelength: 1310nm
- Reach: 10km
- Transmitter: DFB Laser
- Receiver: PIN
- Voltage Supply: 3.3V
- Diagnostics: Digital
- Operating Temperature: -5~70閳?/li>
- Protocol: 10x Fibre Channel Compliant 10 Gigabit Ethernet Compliant Wireless CPRI Compliant
