Brand:HUAWEI
Module name:Optic Transceivers
Model:SFP-25G-LR
Part Number:02312LSE

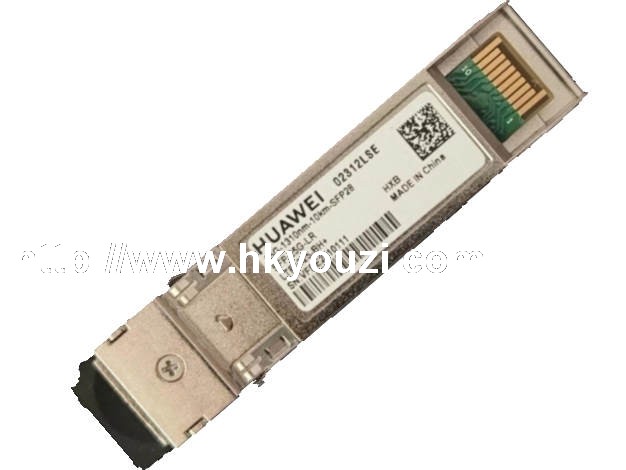

SFP-25G-LR, SFP28,25G,SM,1310nm,10km,LC
SFP-25G-LR
SFP-25G-LR specifications
| Item | Value |
|---|---|
| Basic Information | |
| Module name | SFP-25G-LR |
| Part Number | 02312LSE |
| Model | SFP-25G-LR |
| Form factor | SFP28 |
| Application standard | 25GBASE-LR |
| Connector type | LC |
| Optical fiber type | SMF |
| Working case temperature [°C(°F)] | -40°C to +85°C (-40°F to +185°F) |
| Digital diagnostic monitoring (DDM) | Supported |
| Transmission rate [bit/s] | 25 Gbit/s |
| Target transmission distance [km] | Single-mode fiber: 10 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1310 nm |
| Maximum Tx optical power [dBm] | 2 dBm |
| Minimum Tx optical power [dBm] | -7 dBm |
| Minimum extinction ratio [dB] | 3.5 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity [dBm] | -11.3 dBm |
| Overload power [dBm] | 2 dBm |
